The Complete Technical Guide to High-Speed Nail Filing Drill Bits

For nail professionals who demand precision, durability, and efficiency, the High-speed nail filing drill bit from Ruina Optoelectronic represents a critical investment in service quality. As a professional supplier of nail care equipment, we provide bits engineered from premium materials to deliver consistent performance across acrylic removal, gel shaping, and natural nail preparation.

This guide covers technical specifications, material comparisons, application guidelines, and answers to the most common professional questions.

Why Material Selection Matters for High-Speed Drill Bits

Performance Characteristics by Material

The material of a High-speed nail filing drill bit directly determines removal speed, heat generation, lifespan, and client comfort.

Product Specifications

Below is a comprehensive breakdown of High-speed nail filing drill bit specifications based on industry standards and Ruina Optoelectronic's manufacturing benchmarks.

Detailed Feature List

Shank and Compatibility

- Standard 2.35mm Shank: Compatible with the majority of professional nail drills, including cordless and brushless models .

- Precision Concentricity: ISO-standard manufacturing ensures runout below 0.02mm for smooth, vibration-free operation.

- Non-Slip Design: Knurled or textured shank surface prevents bit slippage during high-speed operation.

Head Geometry by Shape

- Cylinder (Straight): 2.5–5.0mm diameter, 10–14mm length → surface reduction and bulk filing.

- Tapered Cone: 1.5mm tip to 4.5mm base → cuticle work and sidewall cleaning .

- Barrel: 3.0–6.0mm uniform diameter → even filing and callus reduction.

- Flame: 2.0–4.0mm, pointed tip → under-nail cleaning.

- Ball: 1.0–3.5mm round → deep cuticle pockets .

Grit Grading System

- Extra Coarse (80–100 grit): Acrylic bulk removal only.

- Coarse (150–180 grit): Hard gel shaping .

- Medium (200–240 grit): Multipurpose blending.

- Fine (300–400 grit): Natural nail surface prep.

- Extra Fine (600+ grit): Final shine and smoothing.

Application Guidelines by Task

Safety and Handling Checklist

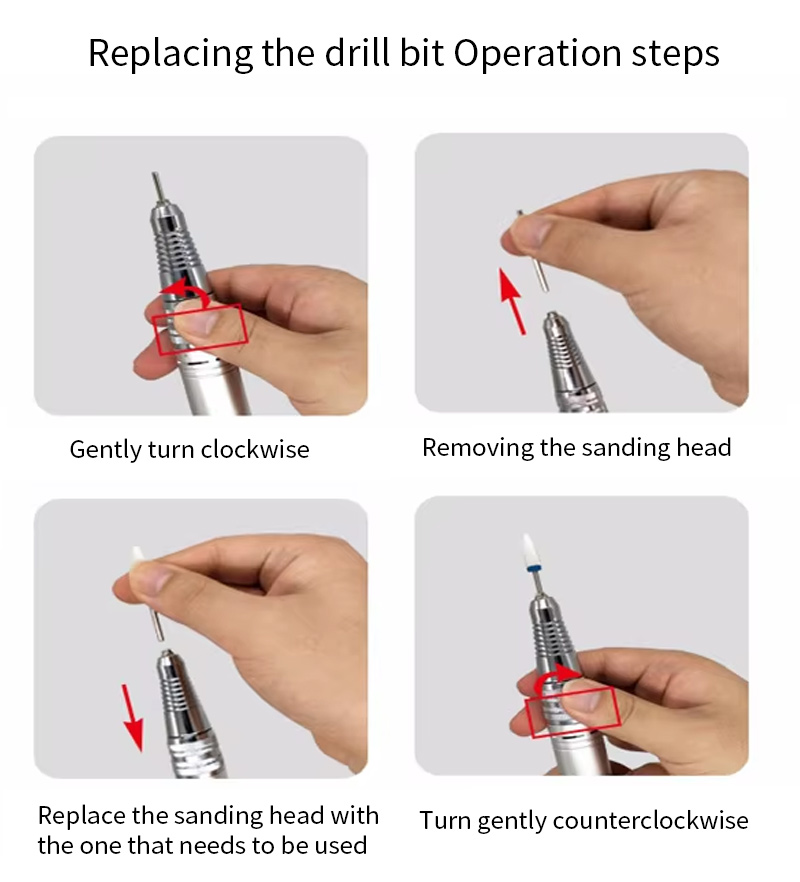

- Always insert the bit fully into the handpiece, then back out 0.5mm. This allows the chuck to grip the strongest part of the shank.

- Run the bit at operating speed for two seconds before touching the nail. Listen for clicking or grinding—these indicate a bent shank.

- Never use the same bit for both acrylic removal and natural nails without intermediate sterilization. Acrylic dust scratches the natural nail plate.

- Replace any bit that shows blue or brown rings near the head. This discoloration means the metal has overheated and lost its temper.

- Keep three bits in rotation: one for coarse removal, one for shaping, one for finishing .

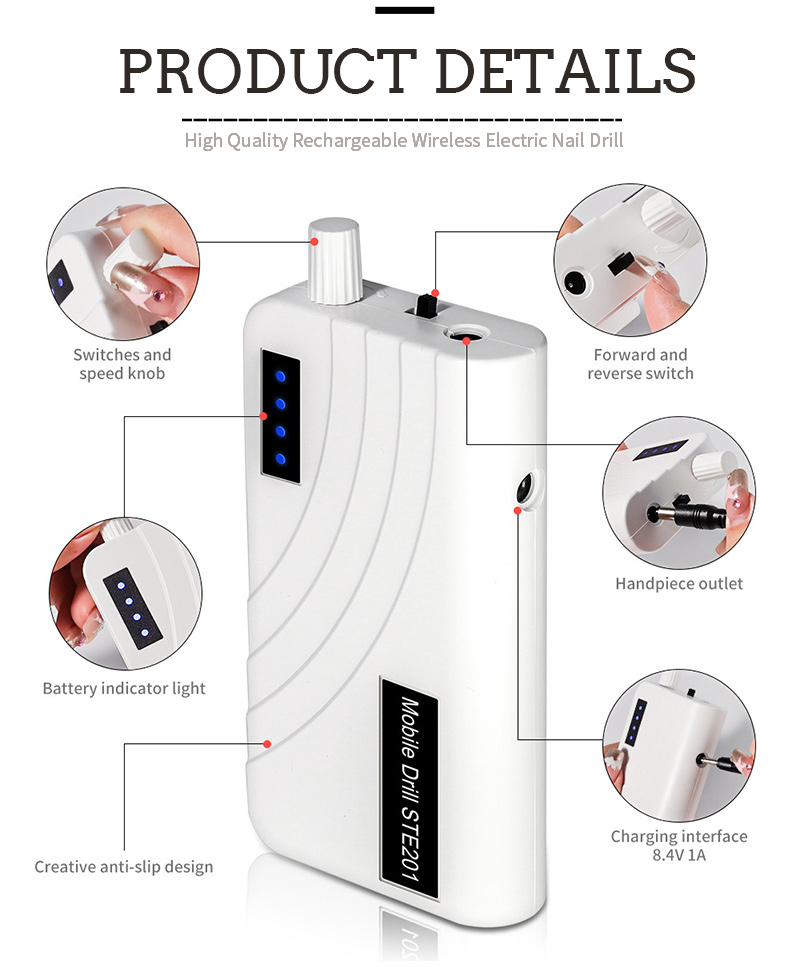

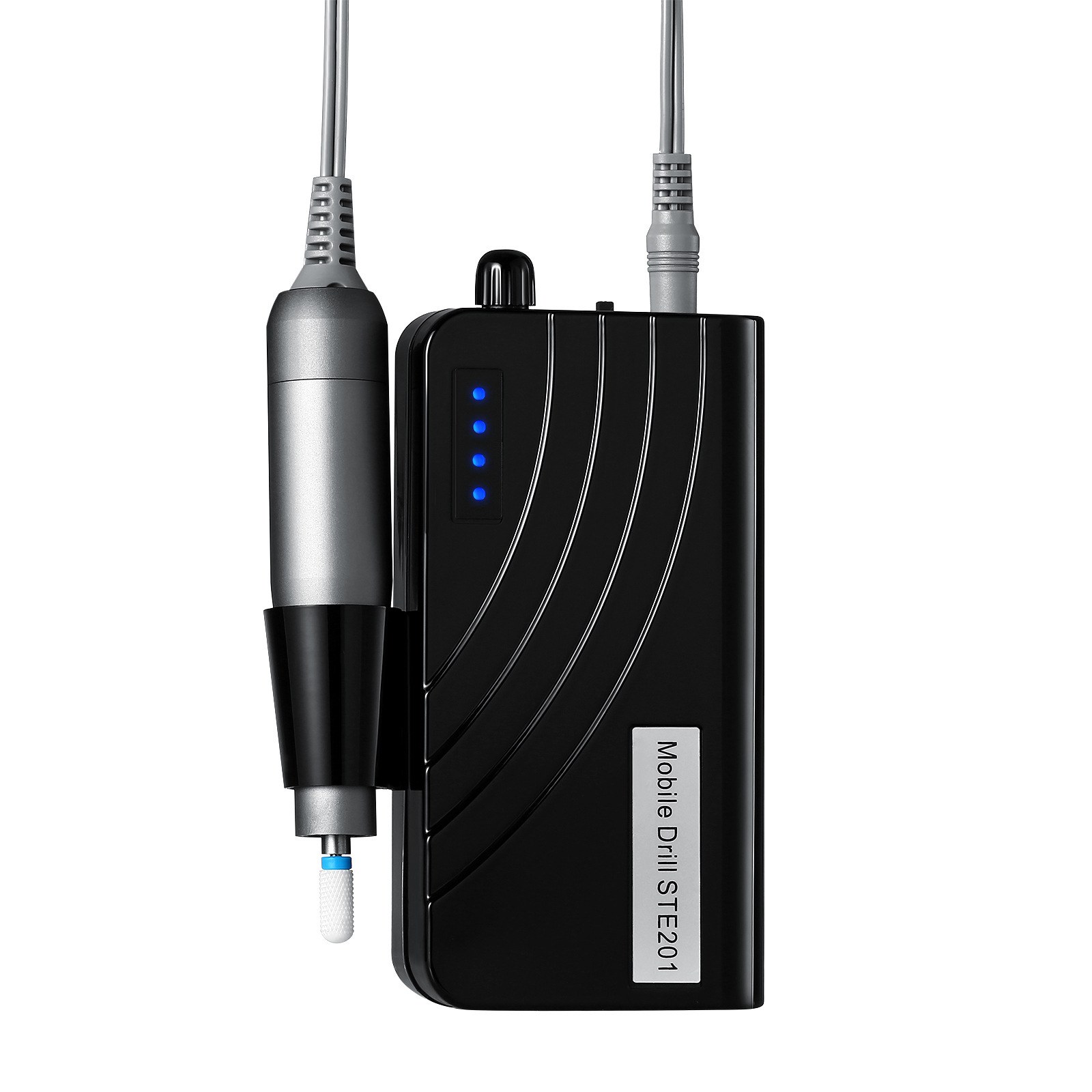

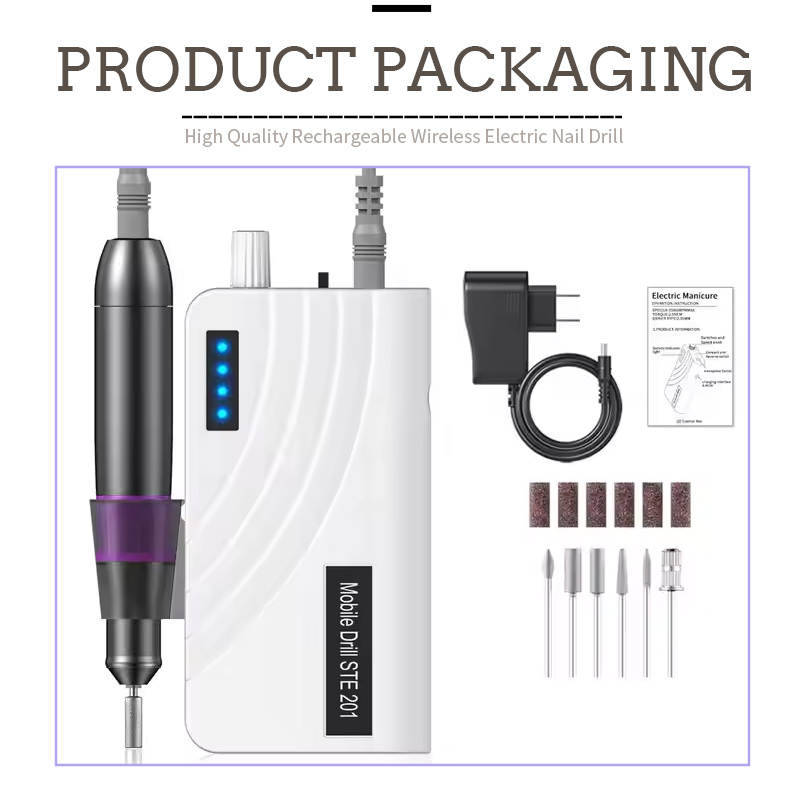

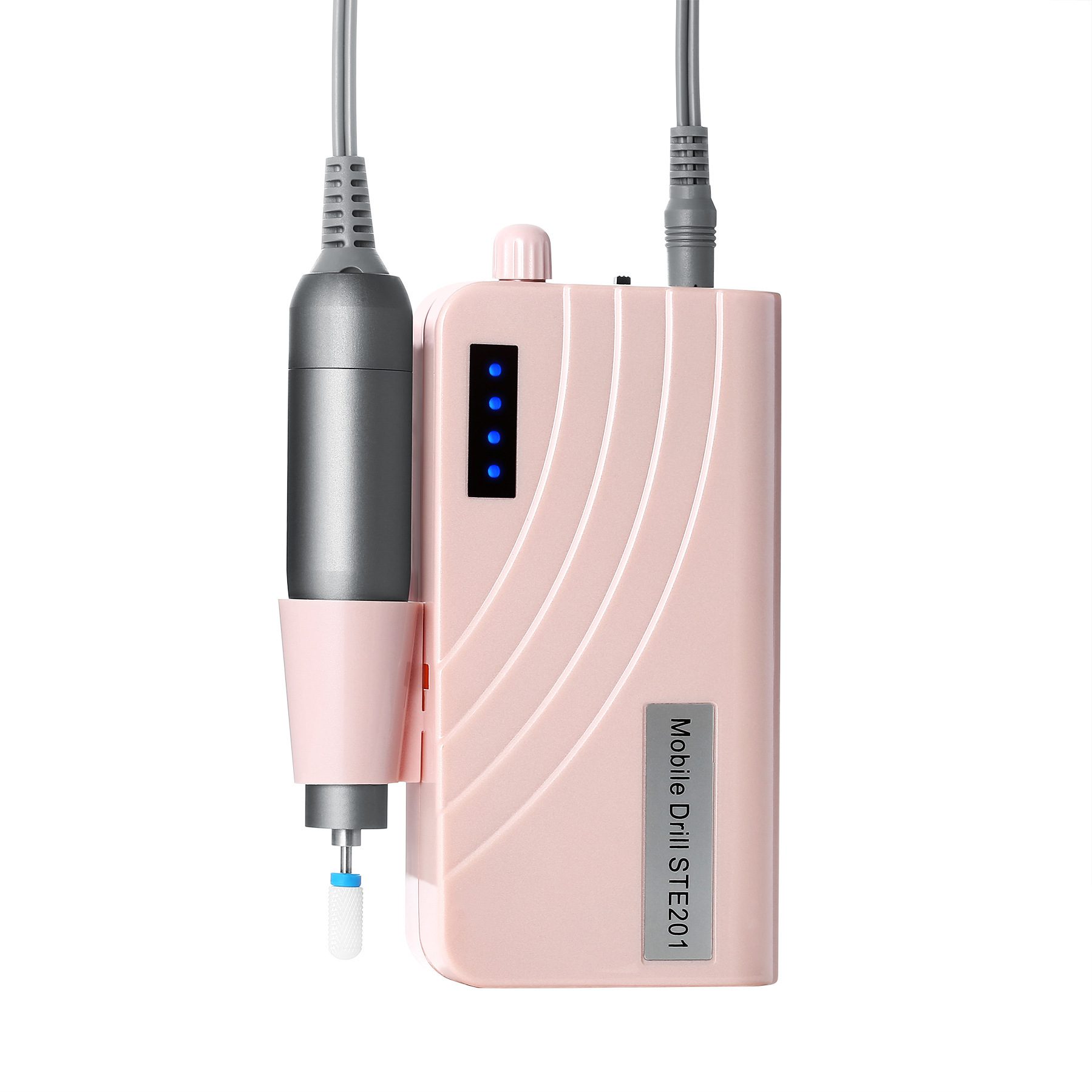

High-speed nail filing drill bit Details

Frequently Asked Questions (FAQ)

1. Can a High-speed nail filing drill bit be used on natural nails without causing damage?

Yes, but only under strict conditions. A High-speed nail filing drill bit will damage natural nails if you use a coarse grit (below 240), exceed 12,000 RPM, or apply pressure. For safe natural nail work, select a fine (300 grit) or extra-fine (600 grit) diamond or ceramic bit. Keep your drill speed between 8,000 and 12,000 RPM. Use only the weight of the handpiece—no extra pressure. Touch the nail for no more than two seconds at a time. If the nail feels hot, stop immediately. When used correctly, a high-speed bit only removes surface shine and stuck cuticle residue, leaving the nail plate intact and smooth .

2. How do I know when my High-speed nail filing drill bit needs replacement?

Three clear signs indicate a worn High-speed nail filing drill bit. First, slower material removal: a fresh carbide bit removes acrylic in two light passes; a dull bit takes four or five passes with visible effort. Second, increased vibration or chatter when the bit touches the nail surface—this means the cutting edges are no longer symmetrical. Third, visible changes on the bit: for diamond bits, look for bald spots where the metal body shows through; for carbide, inspect the flutes for rounded or chipped edges; for ceramic, check for micro-cracks. Also replace any bit with a bent shank—spin it in your hand; if the tip wobbles, discard it. In a busy salon, replace diamond bits every 3 months and carbide bits every 6 months regardless of appearance .

3. What is the correct way to clean and sterilize a High-speed nail filing drill bit?

Cleaning a High-speed nail filing drill bit follows a strict three-step protocol. Step one: dry brush. Use a stiff nylon brush to remove all visible dust from flutes or grit. Never use a wire brush—it destroys diamond and ceramic surfaces. Do not use acetone or monomer; these chemicals break down bonding agents. Step two: soak in an ultrasonic cleaner with enzymatic instrument cleaner (pH neutral, 40°C) for 10 minutes. Step three: rinse with distilled water and dry completely with a lint-free cloth. Add one drop of rotary bit lubricant to the shank—never to the cutting head—to prevent corrosion inside the handpiece chuck. Only bits labeled "autoclavable" can withstand 135°C steam cycles. Diamond high-speed bits must never enter an autoclave; heat causes the diamond layer to crack off .

Why Choose Ruina Optoelectronic

Shenzhen Ruina Optoelectronic Co., Ltd. brings over a decade of specialized manufacturing expertise to every High-speed nail filing drill bit . Operating from a modern production facility, we maintain rigorous quality control while offering factory-direct pricing. Our products are manufactured from premium materials using advanced production technology, ensuring consistent performance and extended lifespan. We provide comprehensive OEM and ODM services, including logo engraving, custom packaging, and private label programs for distributors and beauty brands .

Final Verdict

A High-speed nail filing drill bit is a precision instrument. Match the material, grit, and speed to your task. Clean and lubricate after every client. Replace at the first sign of dullness or wobble. Follow these guidelines, and your bits will deliver safe, fast, professional results for hundreds of hours. For professionals seeking reliability and performance, Ruina Optoelectronic offers the quality and value that support your business growth.
