Ruina Optoelectronic is a leading manufacturer of the Low-Heat Nail Lamp with 4 Timer Settings – the professional-grade curing solution for salons and home users seeking precise control, client comfort, and consistent gel curing results. This guide covers engineering specifications, timer functionality, and expert answers.
In the professional nail industry, the curing lamp is the workhorse of your station. It dictates the speed of service, the durability of the manicure, and—critically—the comfort of your client. While raw power is often the headline feature, true professionalism is defined by control, precision, and safety.
This is where the Low-Heat Nail Lamp with 4 Timer Settings distinguishes itself as an indispensable tool for both busy salons and discerning home users. This guide provides a deep technical dive into the features and specifications that make these lamps the gold standard for modern gel curing.
A professional low-heat lamp is defined by more than just its wattage. It is a sophisticated piece of equipment engineered to balance powerful polymerization with intelligent heat management. The cornerstone of this technology lies in its specialized timer settings, particularly the low-heat curing mode.
| Feature | Specification & Performance Data | Professional Benefit |
| Power Output | 28.8W - 48W High-Intensity LEDs | Provides sufficient energy for curing all gel types while maintaining low heat generation |
| Light Source | Dual Wavelength 365nm + 405nm | Ensures broad compatibility with all UV and LED gel formulations, from soft gels to hard builder gels |

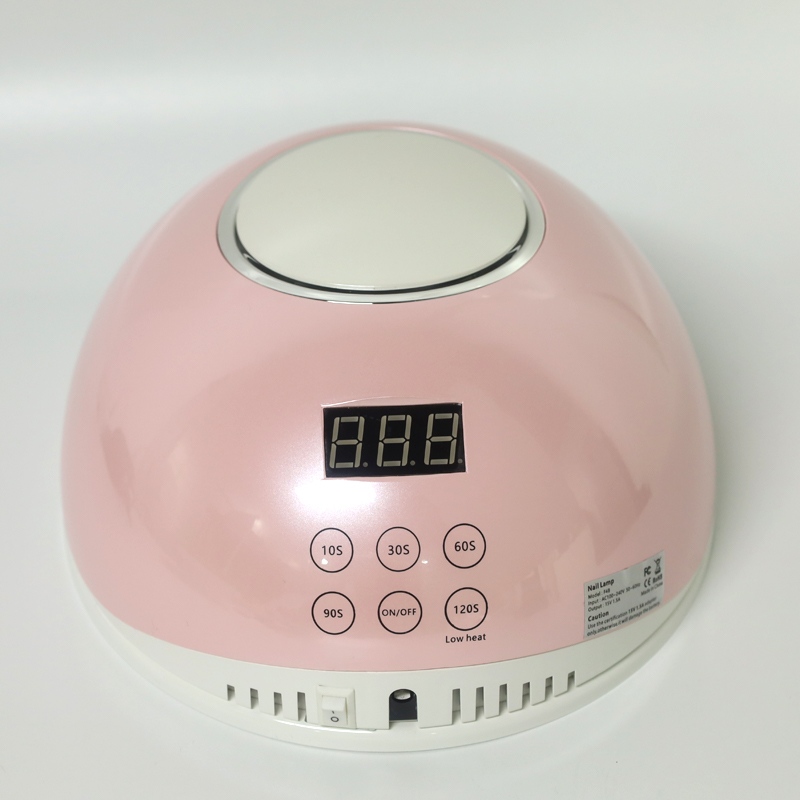

| Timer Settings | 10s, 30s, 60s, 99s (Low Heat) | Offers precise control for flash curing, standard layers, and a dedicated painless mode for sensitive clients and thick products |

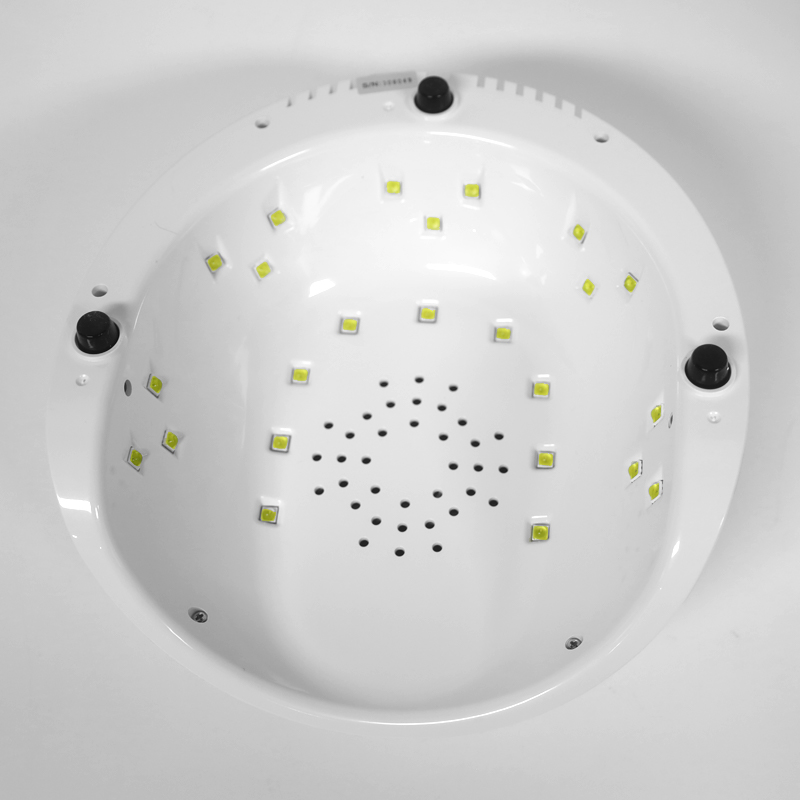

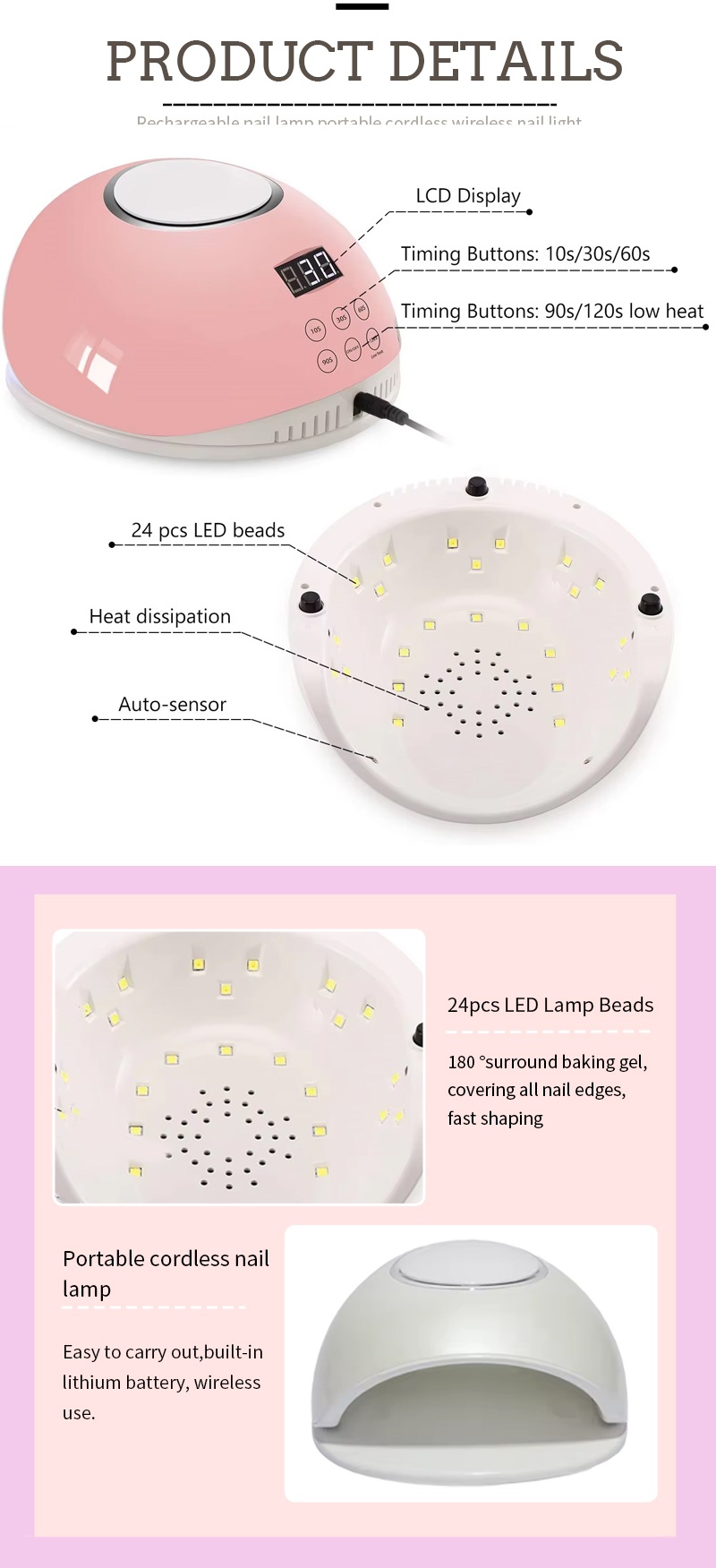

| LED Configuration | 30 to 36 Precision-Placed Dual LED Beads | Strategically arranged to provide 360° light coverage, ensuring even curing without dead zones |
| Lamp Lifespan | 50,000+ Hours | A superior lifespan that guarantees years of consistent, reliable performance without significant light decay |

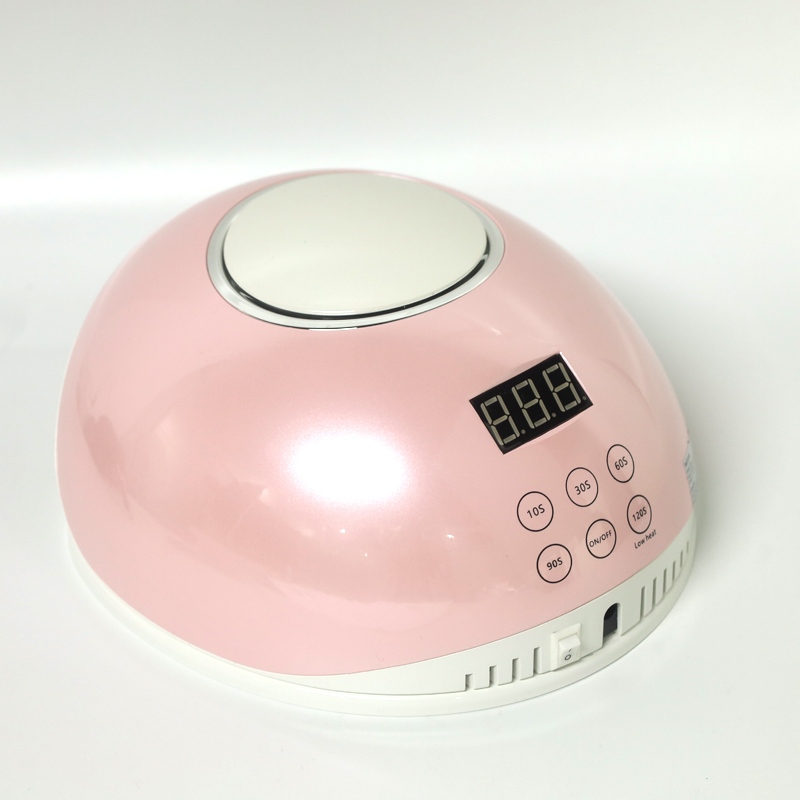

| Smart Features | Infrared Motion Sensor & LCD Display | Auto-activation for hands-free operation and precise countdown/count-up timer readout for total control |
| Safety & Certification | CE, RoHS, & IP20 Certified | Adherence to international safety and environmental standards ensures safe operation in a professional environment |

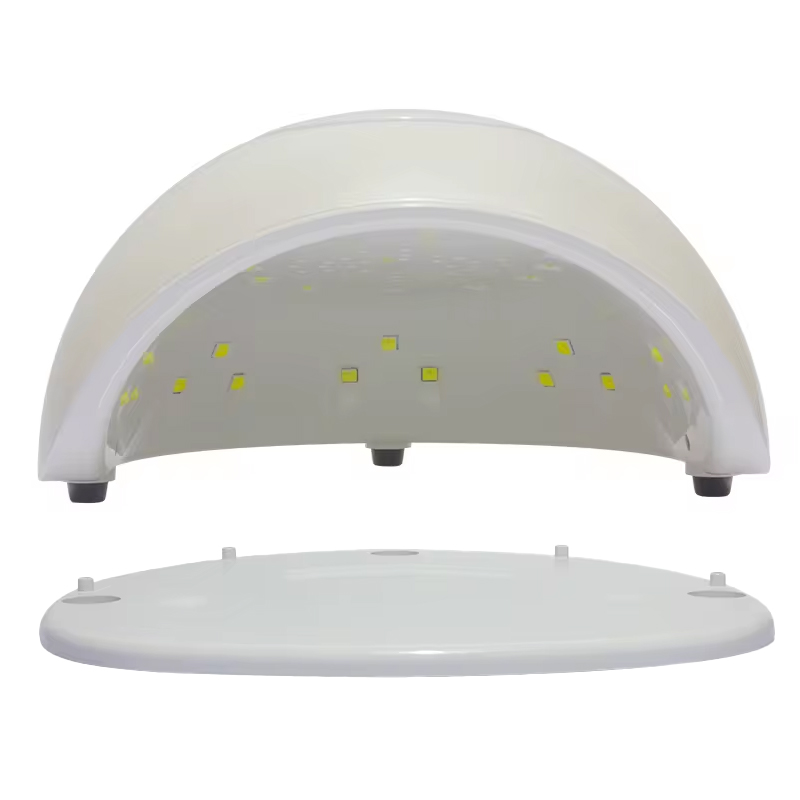

| Removable Base Plate | Yes, for easy cleaning and pedicure use | Enhances hygiene and allows for convenient toe curing, making the lamp versatile for all services |
The key differentiator of a Low-Heat Nail Lamp with 4 Timer Settings is its ability to mitigate the painful "heat spike" often experienced during gel curing. This phenomenon occurs when the polymerization reaction of the gel releases heat, which is most intense at the beginning of the curing process.
| Heat Management Feature | Function | Client Benefit |
| 99-second low-heat mode | Gradual power increase from 20% to 100% | Reduces burning sensation during curing |
| Controlled power curve | Slows polymerization reaction | Spreads heat emission over longer period |
| Dual-wavelength LEDs | 365nm + 405nm | Efficient curing with less heat generation |
The 99-second low-heat mode addresses this by employing a specialized power curve. Instead of delivering full power instantly, the lamp gradually increases its light intensity. This controlled start slows the polymerization reaction, spreading the heat emission over a longer period and significantly reducing the sensation of burning for the client.
This feature is particularly crucial for:
- Builder Gels and Hard Gels: Applied in thicker layers, generating more heat during curing
- Clients with Sensitive Nails: Including first-timers, nail biters, or those with damaged nail plates
- Warm Environments: Warmer climates can make clients more susceptible to heat spikes
| Timer Setting | Best For | Power Output |
| 10 seconds | Flash curing, quick fixes | 100% full power |
| 30 seconds | Thin layers, quick-dry top coats | 100% full power |
| 60 seconds | Standard gel polishes, base coats | 100% full power |
| 99 seconds (Low Heat) | Builder gels, hard gels, sensitive clients | Gradual 20% → 100% power |




A: The standard 60-second mode delivers the lamp's maximum light capacity (100%) for the entire duration, ensuring the fastest possible cure for standard gel polishes and thin layers.
The 99-second low-heat mode (sometimes labelled as 90s low heat) is designed for client comfort:
| Feature | 60s Standard Mode | 99s Low-Heat Mode |
| Power delivery | 100% immediately | Gradual 20% → 100% |
| Heat sensation | Faster, potential heat spike | Reduced, gradual heat |
| Best for | Standard gel polishes, thin layers | Builder gels, hard gels, sensitive clients |
| Cure time | 60 seconds | 99 seconds |
Instead of applying full power immediately, this mode starts at a reduced power (as low as 20%) to slow down the polymerization reaction and prevent the sudden heat spike. It then gradually increases to full power over the 99 seconds. This results in the same full cure with a significantly lower and more gradual heat emission, making it ideal for thick builder gels and sensitive clients.
A: A sticky, tacky residue (often called the "inhibition layer") is a completely normal and expected byproduct of curing most gel polishes, especially base coats and top coats.
| Layer Type | Tacky Residue Purpose | Action Required |
| Base coat | Provides adhesion for next layer | Wipe or leave for next layer |
| Top coat | Provides glossy, smear-free finish | Wipe with cleanser |
| Color coat | Should cure fully (no tackiness) | Check cure if tacky |
This layer is formulated to remain slightly uncured to allow for better adhesion of the next layer (for base coats) or to provide a glossy, smear-free finish after wiping with a cleanser (for top coats). It is not a sign of an incomplete cure, which is characterized by smudging, wrinkling, or peeling.
If you are experiencing genuine under-curing:
- Ensure you are using the correct timer setting for the specific brand and type of gel
- Apply gel layer thinly and evenly
- Darker pigments may require a slightly longer cure time
A: The infrared smart sensor is designed for hands-free convenience and efficiency.
| Sensor Feature | Function | Benefit |
| Motion detection | Activates curing cycle when hand inserted | Hands-free operation |
| Auto-stop | Stops when hand is removed | Energy saving, workflow efficiency |
| Default duration | Count-up up to 120 seconds | Flexible curing time |

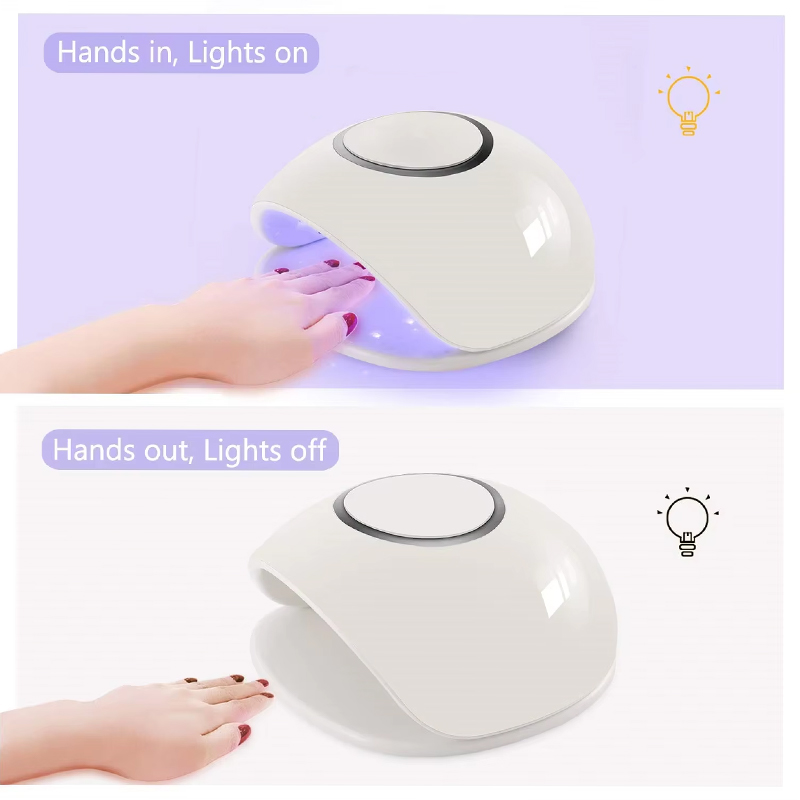

When you insert your hand into the lamp, the sensor detects the motion and activates the curing cycle automatically, usually for a default count-up duration of up to 120 seconds. When you remove your hand, the light stops immediately.
For professional reliability:
- Keep the sensor area clean and free from dust or gel residue
- For maximum control, use manual timer buttons (10s, 30s, 60s, 99s) instead of relying on the sensor for precise curing times
- The sensor is highly reliable when properly maintained
| User Type | Primary Application | Key Benefit |
| Salon owners | High-volume daily curing | Client comfort, consistent results |
| Independent nail technicians | Professional services | Precise timer control |
| Home DIY users | Personal gel manicures | Low-heat mode for comfort |
| Nail schools | Student training | Versatile for all gel types |
| Acrylic/gel specialists | Builder gel applications | 99s low-heat for thick layers |
Ruina Optoelectronic has been manufacturing professional salon equipment for over a decade. Every Low-Heat Nail Lamp with 4 Timer Settings undergoes rigorous quality control testing before shipping. As a trusted manufacturer, Ruina Optoelectronic offers:
- Direct factory pricing for salons, beauty schools, and distributors
- Custom branding options for resellers and private label programs
- Fast global shipping with tracking
- Responsive technical support for product inquiries
- Consistent quality across every batch with lot number traceability
- Replacement parts availability for long-term maintenance
- OEM/ODM capabilities for specialized professional requirements
The Low-Heat Nail Lamp with 4 Timer Settings represents the pinnacle of nail curing technology, offering a crucial balance of power, precision, and client care. Its advanced features—from the dual-wavelength LEDs (365nm + 405nm) and smart sensor to the game-changing 99-second low-heat mode—are designed to enhance service quality, protect client comfort, and ensure consistent, flawless results for any gel type.
Key considerations for selection:
- Low-heat mode: Essential for builder gels and sensitive clients
- 4 timer settings: 10s, 30s, 60s, and 99s low-heat for complete control
- Dual-wavelength LEDs: Compatibility with all gel formulations
- 50,000+ hour lifespan: Long-term reliability
Whether you are a seasoned professional or a dedicated enthusiast, investing in a Low-Heat Nail Lamp with 4 Timer Settings is essential for achieving the highest standards of nail artistry.
Order your Low-Heat Nail Lamp with 4 Timer Settings from Ruina Optoelectronic today and experience the difference that intelligent, client-focused design can make.
